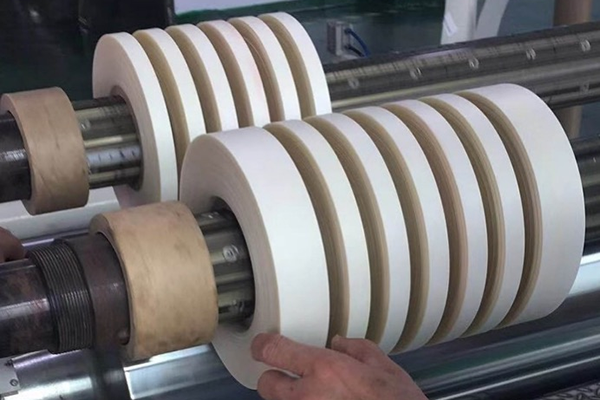

MICEX® Meta Aramid Paper

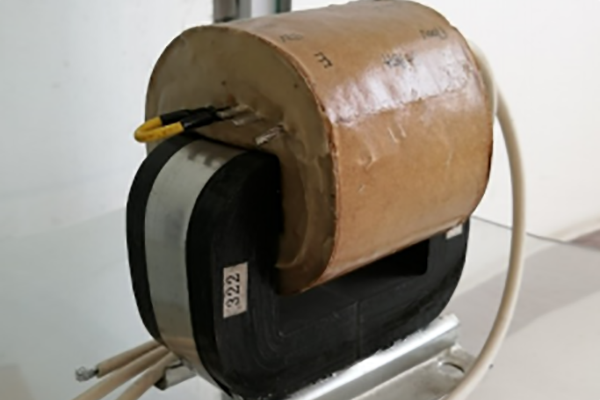

Aramid paper is a specialty paper made from meta-aramid fibers. It can be categorized into aramid paper for electrical insulation and aramid paper for honeycomb core applications.
Aamid paper is known for its high strength, high modulus, high temperature resistance, corrosion resistance, flame retardancy, and insulation properties. It finds extensive applications in fields such as national defense, aerospace, transportation, power, and energy.
Based on the National-recognized Enterprise Technology Center and the National Aramid Engineering Technology Research Center, we have established a comprehensive and open technica service system integrating R&D, sampling, testing, production and end uses, to provide our customers worldwide with professional, differentiated and systematic technical solutions.
MICEX®Meta Aramid Paper
| Model | Nominal thickness | Basis Weight | Density | Dielectric strength | Dielectric constant | Dielectric loss factor | Tensile strength(N/cm) | Elongation(％) | Elmendorf Tear Str.(N) | ||||
| mm | mil | g/m2 | g/cm3 | kV/mm | – | x10-3 | MD | CD | MD | CD | MD | CD | |
| S876 | 0.05 | 2 | 41 | 0.70 | 17 | 1.5 | 4 | 38 | 19 | 6 | 5 | 0.6 | 1.2 |
| 0.08 | 3 | 64 | 0.79 | 22 | 1.6 | 5 | 68 | 36 | 7.5 | 6.5 | 0.95 | 1.7 | |
| 0.13 | 5 | 117 | 0.87 | 23 | 2.3 | 6 | 138 | 69 | 11 | 9 | 2.0 | 3.5 | |
| 0.18 | 7 | 168 | 0.92 | 25 | 2.5 | 6 | 225 | 115 | 11 | 9 | 3.1 | 5.3 | |
| 0.22 | 8.5 | 216 | 0.96 | 28 | 2.6 | 6 | 280 | 140 | 12 | 9 | 3.6 | 6.6 | |
| 0.25 | 10 | 257 | 0.96 | 24 | 2.8 | 6 | 320 | 165 | 13 | 10 | 4.5 | 8.5 | |
| 0.30 | 12 | 311 | 0.96 | 22 | 2.9 | 8 | 360 | 183 | 10 | 7 | 5.7 | 10.7 | |
| 0.38 | 15 | 388 | 0.96 | 22 | 2.9 | 8 | 446 | 230 | 11 | 9 | 7.5 | 14.0 | |
| S826 | 0.04 | 1.5 | 27 | 0.61 | 13 | 1.5 | 4 | 19 | 9 | 3.8 | 3.0 | 0.4 | 0.8 |
| 0.05 | 2 | 38 | 0.68 | 14 | 1.6 | 4 | 34 | 16 | 5.5 | 4.0 | 0.5 | 1.0 | |
| 0.08 | 3 | 65 | 0.79 | 18 | 2.2 | 5 | 64 | 30 | 7.0 | 6.0 | 0.8 | 1.7 | |
MICEX®Aramid Insulation Board
| Model | Nominal thickness | Density | Scales | Tensile strength(Mpa) | Elongation(％) | Moisture | Electrical strength in oil | |||
| mm | mil | g/cm3 | mm | MD | CD | MD | CD | ％ | kV/mm | |
| S896 | 1.0 | 40 | 0.75~1.00 | 1600*2000 | ≥50 | ≥30 | ≥6 | ≥8 | ≤6 | ≥40 |
| 1.6 | 64 | ≥40 | ||||||||
| 2.0 | 80 | ≥35 | ||||||||
| 2.4 | 96 | ≥35 | ||||||||
| 3.0 | 120 | ≥35 | ||||||||
| 3.2 | 128 | ≥35 | ||||||||
| 4.0 | 160 | ≥35 | ||||||||
| S898 | 1.0 | 40 | 1.10~1.20 | 650*2000 | ≥100 | ≥60 | ≥10 | ≥10 | ≤6 | ≥40 |
| 1.5 | 60 | ≥40 | ||||||||
| 2.0 | 80 | ≥35 | ||||||||
| 2.5 | 100 | ≥35 | ||||||||
| 3.0 | 120 | ≥35 | ||||||||
| 4.0 | 160 | ≥35 | ||||||||
| 5.0 | 200 | ≥35 | ||||||||
| 6.0 | 240 | ≥35 | ||||||||

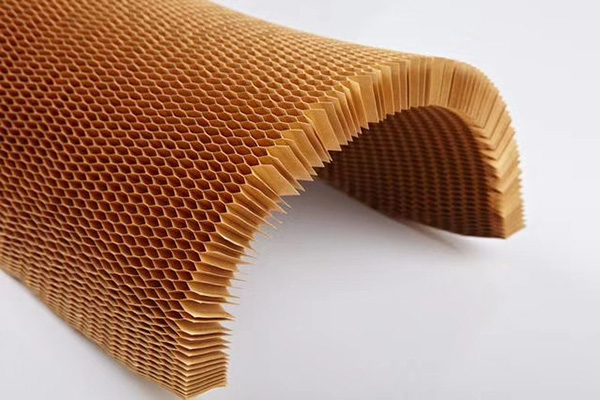

MICEX®Meta-aramid Honeycomb Paper
| Model | Nominal thickness | Typical Thickness | Basis Weight | Density | Tensile Strength(N/cm) | Elongation(％) | Tearing strength(N) | Water absorption(g/m2) | |||||
| mm | mil | mm | g/m2 | g/cm3 | MD | CD | MD | CD | MD | CD | Front | Back | |
| S421 | 0.04 | 1.5 | 0.046 | 28.5 | 0.63 | 22 | 10 | 3.8 | 2.5 | 0.55 | 0.85 | 2.5 | 2.5 |
| 0.05 | 2 | 0.064 | 42.5 | 0.64 | 38 | 17 | 5.2 | 4.1 | 0.80 | 1.40 | 5.0 | 5.0 | |
| 0.08 | 3 | 0.087 | 65.0 | 0.74 | 65 | 31 | 6.8 | 5.4 | 1.20 | 2.00 | 6.5 | 6.5 | |
| 0.10 | 4 | 0.107 | 83.5 | 0.78 | 85 | 42 | 7.0 | 6.0 | 1.60 | 3.00 | 7.5 | 7.5 | |
